Synchro Signal

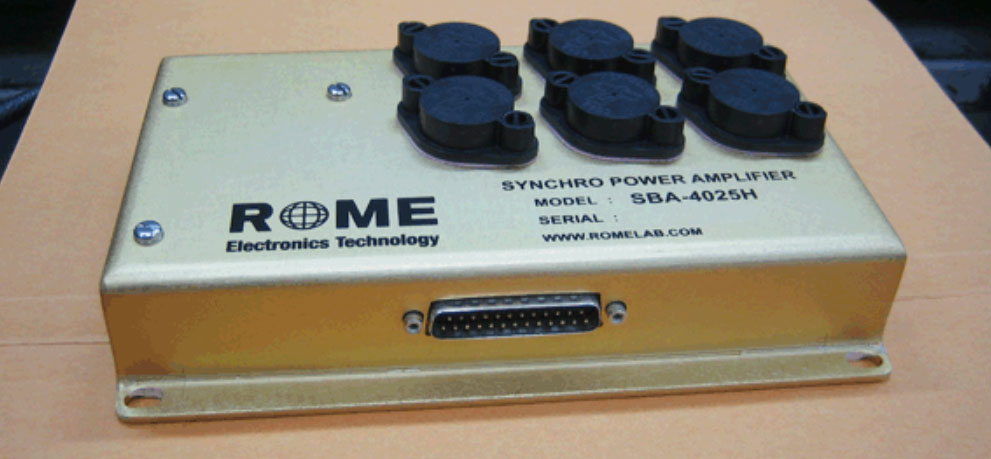

Synchro Booster Amplifiers Details

Name: Admin Count: 155

FEATURES

  •  25, 100VA Models
  • 60 or 400, & 60 and 400 Hz. Models
  • Trouble Free Isolated Inputs & Outputs
  • Ultra High Efficiency, Low Distortion
  • Very Low Loss & Heat Dissipation
  • Simple Bulk-Head/Backplane Mount
  • High Resistance to Shock and Vibration
  • High Reliability Throughout Implementation
  • Built in Kick to Free Stalled Rotors
  • Thermal and Overload Sense & BIT Report
  • Output Enable & Circuit Safe Disable Control
  • Transient & Short Circuit Protected Outputs

APPLICATION

  • Training Simulators
  • Remote Indicators
  • Gun Fire Control
  • Navy Retransmission Systems

SPECIFICATIONS

DC Power Input for Logic Output Supply +5VDC. +10% @ 10mA MAX. (Not Required on -P units, add a p to the end of part number)
Digital Inputs/Outputs: (All Units) * Disable...Input (DIS) : Logic “0” = L=OVDC Enable Power Amplifier Output, TTL Compatible,
requires 2.5ma. at logic 0
Isolation : OptoIsolated - 1000V Peak min. Breakdown voltage to Ground.
Built-in-test...Output, Overload Indicator (BIT) : logic level 1=H, drives 2 TTL loads, indicates amplifier
sensed over load condition forcing it to shut down its outputs until conditions are
satisfied.
Isolation : OptoIsolated - 1000V Peak min. Breakdown voltage to Ground.
Signal Inputs Synchro : 90V L-L 400Hz +10% Impedance = 400K Ohms min. balanced
Signal Input Isolation Internally Transformer Isolated; 500VDC min. Breakdown Voltage to Ground.
Synchro Output 90V. Output Models : 90V L-L +1%:
25VA Models: Drives Zso = 243 Ohms (Passive CT & CDX type loads),
Zss = 6 Ohms (Active Torque Receiver type loads)
100VA Models : Drives Zso = 61, Zss = 1.5 Ohms
ACCURACY +3 arc. minutes for passive CT & CDX load
Reference Power Input 90V Signal, 25VA Models : 115V. RMS +10%, 360-440 Hz. @ 50 mA
90V Signal, 100VA Models : 115V. RMS +10%, 360-440 Hz. @ 725 mA
